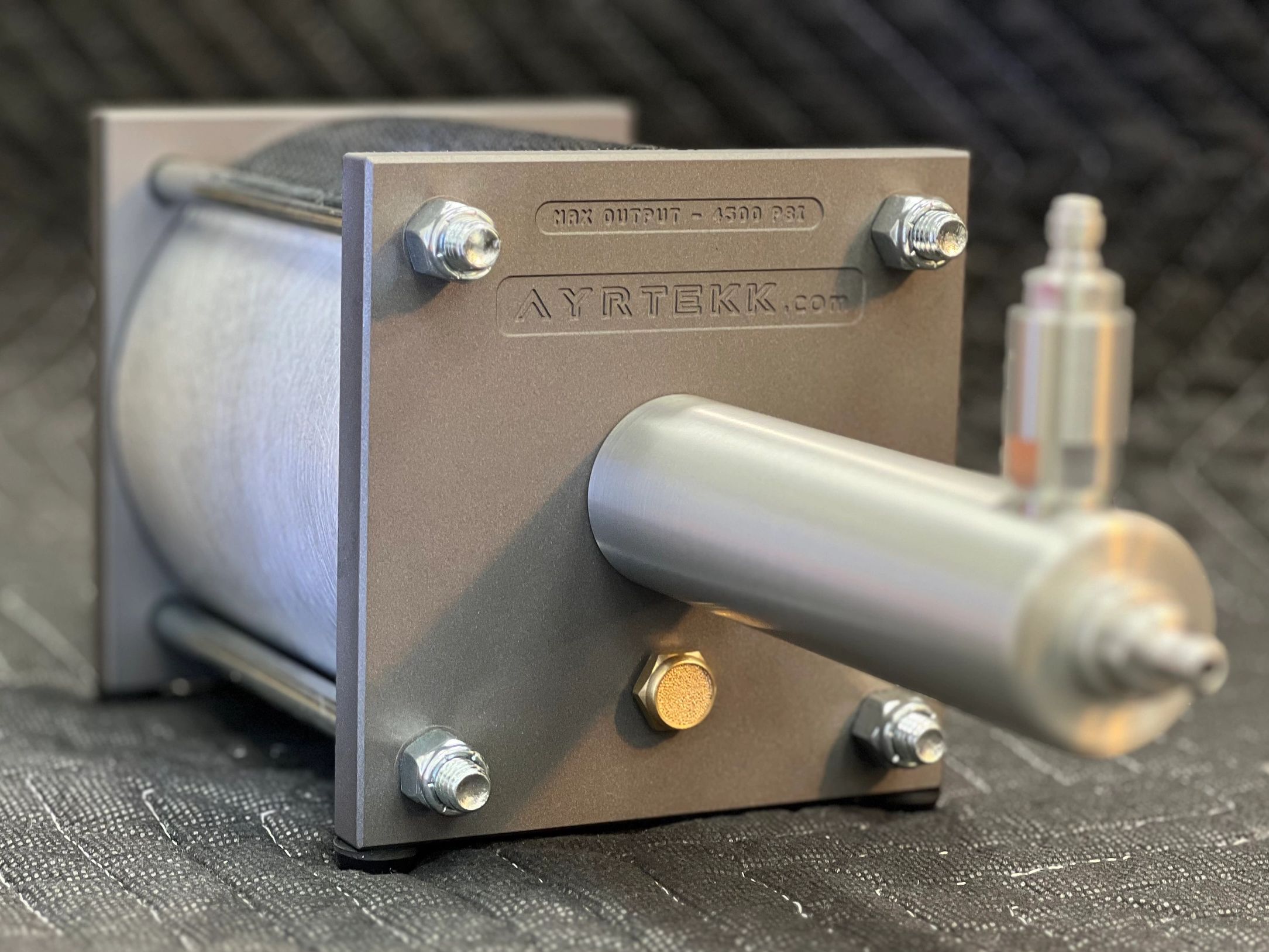

The Ayrtekk Booster Pump is designed to take a lower high pressure air source, as low as 1000 psi, and "Boosts" the source pressure to a higher pressure, up to 4500 psi. The pump is powered by a 125 psi air source. The pump is typically used with compressed air, but is safe with air, oxygen, nitrogen or helium gases
In this video, the Ayrtekk Booster Pump is placed between the high-pressure Air Tank and the PCP Airgun. The lower pressure in the Air Tank feeds the Booster Pump, which then is cycled to "Boost" the high pressure air to the higher pressure air that is desired in the PCP Airgun. An external air compressor is supplying 125 psi air to power the Booster Pump.
Diagram 1 - External Air Source (i.e. an air compressor) powers the Booster Pump by supplying 125 psi of low-pressure compressed air directly to the Booster Pump. A single Air Tank supplying high-pressure compressed air to be boosted.
Diagram 2 - A single Air Tank using a Tee, supply's high-pressure compressed air to the Regulator and high-pressure compressed air to be boosted. The Regulator converts high-pressure compressed air to 125 psi, low-pressure compressed air, to power the Booster Pump.
This video demonstrates the Ayrtekk Booster Pump being used to boost 2000 psi from source to 4500 psi in pressure vessel.
